Quotes - Engineering - SalesAHP-3500-0
Air Cooled Aftercooler| Product | Application | Ratings | Motor |
|---|---|---|---|
| Heat Exchanger | Aftercooler | 250 PSI/350F | Optional |
-Download
Datasheet

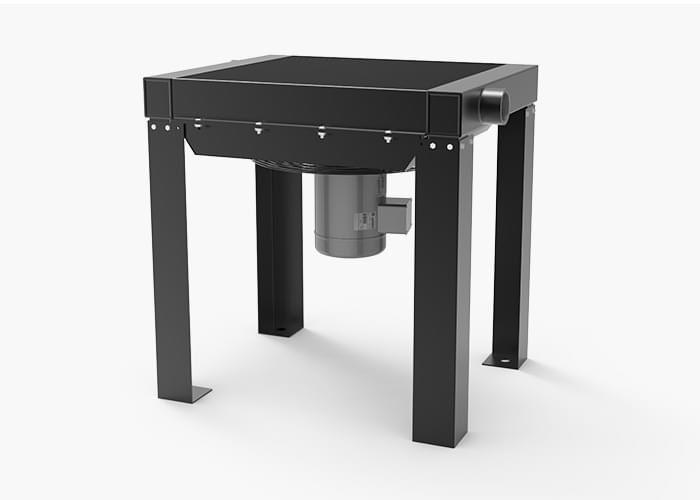

Note: Unit pictured is representative of standard unit and may not exactly depict p/n AHP-3500-0 as shown on this page.
Description
The AHP-3500-0 is an air cooled aftercooler manufactured by TTP with a Optional motor. This unit is designed for a range of compressed air cooling flow rates, however as a baseline it can cool 3500 SCFM based on 250F compressed air with a 15F approach. This cooler is mounted for Vertical, the core is constructed of aluminum, the shroud is steel and it has a TEFC motor.
Product Overview
Part Number:
AHP-3500-0
Series:
AHP
Brand:
TTP
Configuration & Size
Rated Capacity:
3500 SCFM
Fan Capacity:
17500 SCFM
Mount:
Vertical
Motor HP:
10.0
Materials of Construction
- Shroud: Steel
- Fan: Aluminum Hub with Plastic Blades
- Motor: TEFC
- Fan Guard: Steel with Enamel Finish
Max Rating
- Max Pressure: 250 PSI
- Max Temperature: 350F
